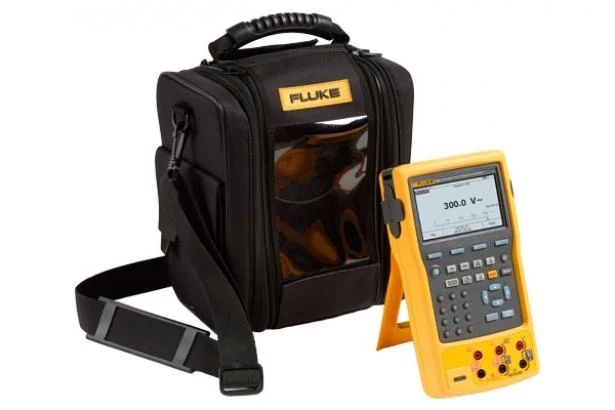

Fluke 754 Documenting Process Calibrator-HART In Stock

Fluke 754 Documenting Process Calibrator-HART In Stock

Model: Fluke 754

Supplier: Products

Categories: Fluke

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Fluke 754 Documenting Process Calibrator-HART In Stock






Key features of Fluke 754 Documenting Process Calibrator-HART In Stock


• Full-featured documenting process calibrator with HART communication for calibrating and troubleshooting HART instrumentation.

• Measures volts, mA,TDs, thermocouples, frequency, and ohms to test sensors, transmitters and more

• Sources/simulates volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters

• Powers transmitters during test using loop supply with simultaneous mA measurement



Product overview: Fluke 754 Documenting Process Calibrator-HART In Stock


Fluke 754 Documenting Process Calibrator with HART communication does the work of many tools


Whether you're calibrating instruments, troubleshooting a problem, or running routine maintenance, the Fluke 754 with HART® communication can help you get the job done faster. It does so many different tasks, so quickly and so well, it's the only process calibrator you need to carry. This rugged, reliable integrated communicating calibrator is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.


The 754 is a power multifunction documenting calibrator that you can use to download procedures, lists, and instructions created with software; or upload data for printing, archiving, and analysis. The powerful built-in HART interface is capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.


In fact, the 754 does the work of several tools. It sources, simulates and measures pressure, temperature, and electrical signals with one rugged, hand-held device. For documentation, the 754 automates calibration procedures and captures your data. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations. Plus, the new improved graphical screen, Li-Ion battery for longer life, USB port, and accessories help you work smarter and faster.


To create a seamless/paperless calibration management system consider adding Fluke DPCTrack2 Calibration Management software for use with your Fluke 753 and 754 or even legacy Fluke 743 and 744 calibrators.


Other useful features of Fluke 754 Documenting Process Calibrator-HART In Stock


• Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms

• Measures/sources pressure using any of 29 Fluke 700Pxx Pressure Modules

• Creates and runs automated as-found/as-left procedures to satisfy quality programs or regulations, and records and documents results

• Holds up to a full week of downloaded procedures and calibration results

• Uses many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay and more

• Provides easy-to-use multi-lingual interface

• Features a bright white dual display for reading both sourced and measured parameters simultaneously

• Includes rechargeable Li-Ion battery for 10 hour uninterrupted use

• Comes with three-year warranty and DPC/Track Sample software

• Offers compatibility with many asset management software packages



Specifications: Fluke 754 Documenting Process Calibrator-HART In Stock


Measurement Accuracy of Fluke 754 Documenting Process Calibrator-HART In Stock

Voltage DC

Range/ Resolution

1 Year

2 Years

100.000 mV

0.02% + 0.005 mV

0.03% + 0.005 mV

3.00000 V

0.02% + 0.00005 V

0.03% + 0.00005 V

30.0000 V

0.02% + 0.0005 V

0.03% + 0.0005 V

300.00 V

0.05% + 0.05 V

0.07% + 0.05 V

Voltage AC

3.000 V (40 Hz to 500 Hz) / 0.001 V

0.5% + 0.002 V

1.0% + 0.004 V

30.00 V (40 Hz to 500 Hz) / 0.01 V

0.5% + 0.02 V

1.0% + 0.04 V

300.0 V (40 Hz to 500 Hz) / 0.1 V

0.5% + 0.2 V

1.0% + 0.2 V

Current DC

30.000 mA

0.01% + 5 uA

0.015% + 7 uA

110.00 mA

0.01% + 20 uA

0.015% + 30 uA

Resistance

10.000 Ω

0.05% + 50 mΩ

0.07% + 70 mΩ

100.00 Ω

0.05% + 50 mΩ

0.07% + 70 mΩ

1.0000 kΩ

0.05% + 500 mΩ

0.07% + 0.5 Ω

10.000 kΩ

0.1% + 10 Ω

0.15% + 15 Ω

Frequency

1.00 to 110.00 Hz / 0.01 Hz


0.05 Hz

110.1 to 1100.0 Hz / 0.1 Hz


0.5 Hz

1.101 to 11.000 kHz / 0.001 kHz


0.005 kHz

11.01 to 50.00 kHz / 0.01 kHz


0.05 kHz

Source Accuracy of Fluke 754 Documenting Process Calibrator-HART In Stock



1 Year

2 Years

Voltage DC

100.000 mV

0.01% + 0.005 mV

0.015% + 0.005 mV

1.00000 V

0.01% + 0.00005 V

0.015% + 0.0005 V

15.0000 V

0.01% + 0.0005 V

0.015% + 0.0005 V

Current DC

22.000 mA (source)

0.01% + 0.003 mA

0.02% + 0.003 mA

Current sink (simulate)

0.02% + 0.007 mA

0.04% + 0.007 mA

Resistance

10.000 Ω

0.01% + 10 mΩ

0.015% + 15 mΩ

100.00 Ω

0.01% + 20 mΩ

0.015% + 30 mΩ

1.0000 kΩ

0.02% + 0.2 Ω

0.03% + 0.3 Ω

10.000 kΩ

0.02% + 3 Ω

0.03% + 5 Ω

Frequency

0.1 to 10.99 Hz


0.01 Hz

0.01 to 10.99 Hz


0.01 Hz

11.00 to 109.99 Hz


0.1 Hz

110.0 to 1099.9 Hz


0.1 Hz

1.100 to 21.999 kHz


0.002 kHz

22.000 to 50.000 kHz


0.005 kHz

Technical Data of Fluke 754 Documenting Process Calibrator-HART In Stock

Data log functions

Measure functions

Voltage, current, resistance, frequency, temperature, pressure

Reading rate

1, 2, 5, 10, 20, 30, or 60 readings/minute

Maximum record length

8000 readings (7980 for 30 or 60 readings/minute)

Ramp functions

Source functions

Voltage, current, resistance, frequency, temperature

Rate

4 steps/second

Trip detect

Continuity or voltage (continuity detection not available when sourcing   current)

Loop power function

Voltage

Selectable, 26 V

Accuracy

10%, 18 V minimum at 22 mA

Maximum current

25 mA, short circuit protected

Maximum input voltage

50 V DC

Step functions

Source functions

Voltage, current, resistance, frequency, temperature

Manual step

Selectable step, change with arrow buttons

Autostep

Fully programmable for function, start delay, stepvalue, time per step,   repeat
