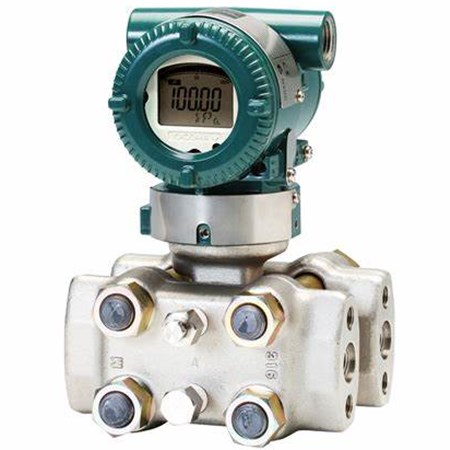

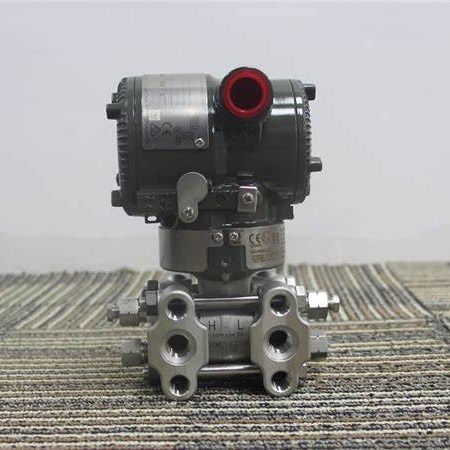

Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
Description of Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
The high performance Yokogawa differential pressure transmitter model EJA110A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. The EJA Series is available with BRAIN, HART, FOUNDATION fieldbus or PROFIBUS PA communication protocols.
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
EJA110E features include:
· 0.055% Accuracy (0.04% Accuracy optional)
· 0.1% Stability per 10 years
· 90 ms Response Time
· Exida and TUV SIL 2 / SIL3 Certified
· MWP 2,300 psi (MWP 3,600 psi option)
· Local Parameter Setting (LPS)
Features of Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
Excellent performance and stability
The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.
Compact and light-weight design
Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.
Fieldbus communication capability
Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.
Output:Two wire 4 to 20 mA DC
Yokogawa EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation
YOKOGAWA Pressure Transmitter EJA Series Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
- EJA210E Draft Range Differential Pressure Transmitter
- EJA310E High Static Differential Pressure Transmitter
- EJA210 / EJA220E Flange Mounted Differential Pressure Transmitter
Specifications of Yokogawa EJA110E-JMS4G-914DB EJA110E Differential Pressure Transmitters
| Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E | |||||
| L Capsule | M Capsule | H Capsule | V Capsule | ||
| Range | -10 to 10 kPa | -100 to 100 kPa | -500 to 500 kPa | -0.5 to 14 MPa | |
| (-40 to 40 inH2O) | (-400 to 400 inH2O) | (-2000 to 2000 inH2O) | (-70 to 2000 psi) | ||
| Span | 0.5 to 10 kPa | 1 to 100 kPa | 5 to 500 kPa | 0.14 to 14 MPa | |
| (2 to 40 inH2O) | (4 to 400 inH2O) | (20 to 2000 inH2O) | (20 to 2000 psi) | ||
| Accuracy | ±0.075% | ±0.065% | ± 0.065% | ±0.065% | |
| Degrees of Protection | IP67, NEMA 4X, and JIS C0920 immersion proof | ||||
| Certificates | FM, CENELEC ATEX, CSA, IECEx | ||||
| Output | 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication | ||||
| Supply Voltage | BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type) | ||||
| Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model) | |||||
| Ambient temperature | -40 to 85 deg C (-40 to 185 deg F) (general use type) | ||||
| -30 to 80 deg C (-22 to 176 deg F) (with integral indicator) | |||||
| Process Temperature | -40 to 120 deg C (-40 to 248 deg F) (general use type) | ||||
| Maximum Working Pressure | 16MPa(2300psi) | ||||
| 3.5MPa(500psi) for L capsule with special materials | |||||
| Mounting | 2-inch pipe mounting | ||||
| Wetted parts material | Capsule | SUS316L(Diaphragm material is Hastelloy C-276), | |||
| Hastelloy C-276, Tantalum, Monel | |||||
| Cover flange | SUS316, Hastelloy C-276, Monel | ||||
| Housing | Cast aluminum alloy or SUS316 equivalent stainless steel (optional) | ||||
