PRODUCT DESCRIPTION

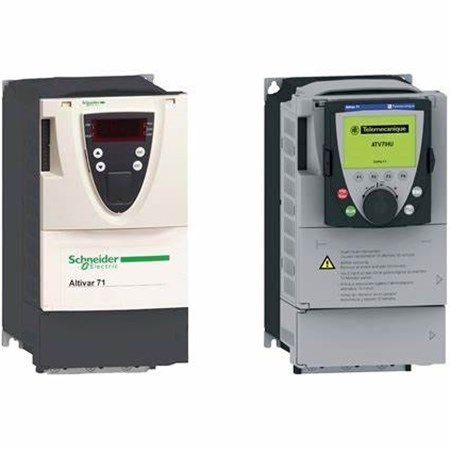

Schneider ATV71HD22N4Z Altivar 71 Variable Speed Drive ATV71HD22N4Z 22kW Inverter



Schneider ATV71HD22N4Z Altivar 71 Variable Speed Drive ATV71HD22N4Z 22kW Inverters


Main of Schneider ATV71HD22N4Z Altivar 71 Variable Speed Drive ATV71HD22N4Z 22kW Inverter


range of product                Altivar 71

product or component typeVariable speed drive

product specific applicationComplex, high-power machines

component name            ATV71

power supply voltage       380...480 V (- 15...10 %)

network number of phases3 phases

apparent power                32.9 kVA at 380 V 3 phases 22 kW / 30 hp

prospective line Isc                  <= 22 kA, 3 phases

output frequency                 0.1...599 Hz



Complementary of Schneider ATV71HD22N4Z Altivar 71 Variable Speed Drive ATV71HD22N4Z 22kW Inverter


product destination                Asynchronous motors

                                                Synchronous motors

power supply voltage limits323...528 V

power supply frequency        50...60 Hz (- 5...5 %)

power supply frequency limits 47.5...63 Hz

diagnostic                         1 LED red presence of drive voltage

output voltage                         <= power supply voltage
