Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW

Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW

Model: 25A-D030N114

Supplier: Products

Categories: Allen-Bradley

After sales service. If you have any questions, click here.

PRODUCT DESCRIPTION

Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW



Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW-




Brief Description of Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW



25A-D030N114

BRAND : ALLEN-BRADLEY

Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drive, 480 VAC, 3 Phase, 20 HP, 15 kW Normal Duty; 15 HP, 11 kW Heavy Duty, Frame D, IP20 NEMA / Open Type, Filter

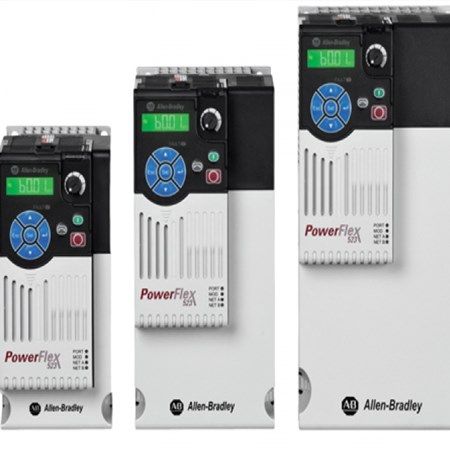

PowerFlex 523 AC Drives of Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW



PowerFlex 523 AC Drives are cost-effective and ideal for standalone machines. These drives provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options. PowerFlex 523 AC drives offer a power rating of 0.2...22 kW (0.25...30 Hp) with global voltage classes of 100...600V. They support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70 °C (158 °F).




Features of Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW



• Power ratings of 0.2…22 kW / 0.25…30 Hp in global voltages from 100...600V

• Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuration

• Offers a wide range of motor control, including volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode

• Operates in ambient temperature range up to 70°C (158°F) with current derating and a control module fan kit

• Offers side-by-side mounting with 50mm (1.96 in) air-flow gap at the top and bottom of the drive

• Supports low-cost networking through an integrated RS485/DSI port


Technical Specifications for Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW

Manufacturer                         Rockwell Automation

Brand                                 Allen-Bradley

Part Number/Catalog No. 25A-D030N114

Series                                 PowerFlex 523

Voltage                                 Three Phase, 480 VAC

Output Current                  30 Amperes

Enclosure Type                  IP20 NEMA / Open Type

Interface Module                  Standard

Frame Size                          Frame D

EMC Filtering Option           Single




TECHNICAL SPECIFICATIONS of Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15kW

Brand Name :       Allen-Bradley

Sub Brand :          PowerFlex 525

Application :         15 kW (20 Hp),380-480V AC Input,50 Hz/60 Hz30Amp,D Frame,Panel Mounting,IP20/NEMA Open,EMC Filter,with 7th IGBT Brake

Depth :                  212

Environmental Conditions : -20C to 50C (-4F to 122F)

Input :                  Three Phase 380-480V

Size :                    D

Standard :            UL,CE,C-TICK,CUL,KC

Type :                   AC Drive

Wattage (Hp) :     15kW (20Hp)

Width :                 130



Ordering Codes of Allen-Bradley 25A-D030N114 PowerFlex 523 AC Drives 25A-D030N114 Inverters 15 KW
