PRODUCT DESCRIPTION

Foxboro Eckardt SRD991 Intelligent Positioner SRD991 Positioners with Hart


Foxboro ECKARDT SRD991 Intelligent Positioner SRD991 Positioner with Hart



Description of Foxboro Eckardt SRD991 Intelligent Positioner SRD991 Positioners with Hart

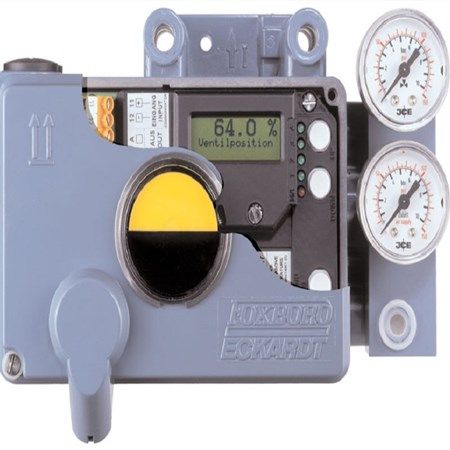

The intelligent positioner SRD991 is designed to operate pneumatic valve actuators and can be operated from control systems (e.g. the Foxboro I/A Series System), controllers or PC-based configuration- and operational tools such as PC20 / IFDC or PC50 (FDT Software). The positioner is available with different communication protocols.


The multi-lingual full text graphical-LCD in connection with the 3 push buttons allows a comfortable and easy local configuration and operation as well as the display of valve specific data, and status- and diagnostic messages.



DEVICE FEATURES of Foxboro Eckardt SRD991 Intelligent Positioner SRD991 Positioners with Hart


Intelligent

• Auto-start with self-calibration

• Self diagnostics, status- and diagnostic messages

• Easy operation with three keys

• Multi-Lingual full text graphical LCD, or LEDs


with communication

•  HART, FOUNDATION Fieldbus H1,PROFIBUS-PA, FoxCom

•  Configuration by means of local keys, handheld terminal (HART), PC or I/A Series system or with a infrared interface by means of IRCOM


without communication

•  Input signal 4 to 20



COMMON FEATURES of Foxboro Eckardt SRD991 Intelligent Positioner SRD991 Positioners with Hart


• Stroke 8 to 120 mm / 260 mm (0.3 to 4.7 in / 10.2 in)

• Angle range up to 95 °

• Supply air pressure up to 6 bar (90 psig),with spool valve up to 7 bar (105 psig)

• Single or double-acting

• Mounting on linear actuators according to NAMUR

– IEC 534, Part 6 – VDI/VDE 3847

• Mounting on rotary actuators acc. to VDI/VDE 3845

• Protection class IP 65, NEMA 4X

• Explosion protection: Intrinsic safety according to ATEX and FM/ CSA



FUNCTIONAL SPECIFICATIONS (common data for all versions) of Foxboro Eckardt SRD991 Intelligent Positioner SRD991 Positioners with Hart


Travel range

Stroke range . . . 8 to 260 mm (0.3 to 10.2 in)with standard feedback levers; special levers on

request

Rotation angle range . . . up to 95° without mechanical stop

Supply

Supply air pressure . . . . . . . 1.4 to 6 bar (20 to 90 psig)

with spool valve 1) . . . . . . 1.4 to 7 bar (20 to 105 psig)

Output to actuator . . . . . . . . 0 to ~100 % of supply air

pressure (up to 5.5 bar at 6 bar supply air pressure)

with spool valve heavy duty2): 4 to 10 bar

Air supply. . . . . . . . . . . . . . . according to ISO 8573-1

- Solid particle size and density class 2

- Oil rate. . . . . . . . . . . . . . . class 3

- Pressure dew point 10 K under ambient temperature

The use of filter regulator for air supply of positioner is strongly recommended. It reduces the air pre

ssure to actuator’s maximum pressure and keeps it constant.

Volume Booster Series For large actuators or to reduce action time, a volume booster may be necessary

VBS100/VBS110

Volume boosters with Cv1 and pneumatic connection 1/4”,for remote mounting

VBS100 in Aluminium, VBS110 in Stainless Steel 316 For more information please consult PSS

EVE0601

VBS300/VBS310

Volume boosters with Cv 5 and pneumatic connection 1’’,for remote mounting

VBS300 in Aluminium, VBS310 in Stainless Steel 316For more information please consult PSS

EVE0603
