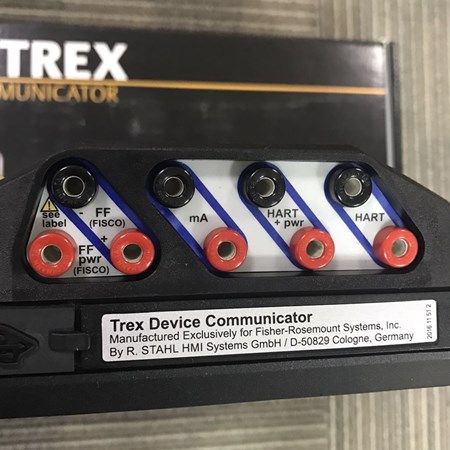

Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
Specifications of Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
Weight Approximately 2.9 lbs (1330 grams)
Microprocessor 800 MHZ ARM Cortex A8/NXP
Memory Internal Flash 2 GB NAND and 32 GB extended flash
RAM 512 MB DDR3 SDRAM
Display 5.7 in (14.5 cm) color VGA resistive touchscreen
Battery Operating Time 8+ hours of typical use
Operating Temperature -20 to 55°C (-4 to 122°F)
Enclosure Rating IP54
Shock Tested to survive a 1-meter drop test onto concrete
Features of Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
• Eliminate the need for specialized tools with power the loop functionality
• Quickly resolve field devices issues with advanced diagnostics
• Configure and test valves inline
• Improve efficiency with a modern, intuitive user interface
• Intrinsically safe to go anywhere you go
• Automatically synchronize field data with AMS Device Manager
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
The AMS Trex Device Communicator expands the long line of Emerson handheld devices while adding new capabilities that adapt it to consumer expectations for mobile device functionality.
Technicians armed with a Trex communicator won’t waste time bringing devices back to the shop for analysis or reconfiguration. Problems with Foundation Fieldbus and HART devices can be diagnosed in the field while the devices are still installed. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive, invasive physical investigation of the problem.
Technicians need powerful and portable diagnostic tools so they can identify and troubleshoot device issues to minimize process upsets. With a Trex communicator in hand, you can properly diagnose device issues in the field. With the right handheld, maintenance teams will experience significant savings in work hours and peace of mind knowing that problems will be fixed quickly and properly the first time.
• Commission and validate devices faster
• Quickly fix issues in the field with advanced device diagnostics
• Configure and test valves inline
• Improve efficiency with a modern,intuitive user interface
• Intrinsically safe; usable anywhere you need to go
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
The Emerson AMS Trex device communicator is designed for comfortable, one-handed, all-day operation in the field. It is packaged in an evenly-balanced form factor with a rugged hand strap so it is easy to hold, even when working in tight spaces. It comes standard with 32 GB of application memory, providing plenty of space to customize with the apps of your choice. With built-in Bluetooth, USB, and WiFi connectivity, data can be moved to and from the communicator using whichever connectivity option is most convenient.
The Trex communicator features a 5.7 inch resistive touchscreen display that is easy to use with bulky work gloves. The adjustable backlit screen can be adjusted to save power and adapt to dark environments or bright sunlight, ensuring a crisp display that is always easy to read.
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
The AMS Trex Device Communicator expands the long line of Emerson handheld devices while adding new capabilities that adapt it to consumer expectations for mobile device functionality.
Technicians armed with a Trex communicator won’t waste time bringing devices back to the shop for analysis or reconfiguration. Problems with Foundation Fieldbus and HART devices can be diagnosed in the field while the devices are still installed. Simple issues can be addressed on the spot, avoiding unnecessary, and potentially destructive, invasive physical investigation of the problem.
Technicians need powerful and portable diagnostic tools so they can identify and troubleshoot device issues to minimize process upsets. With a Trex communicator in hand, you can properly diagnose device issues in the field. With the right handheld, maintenance teams will experience significant savings in work hours and peace of mind knowing that problems will be fixed quickly and properly the first time.
Once changes are made in the field, AMS Trex will automatically synchronize the information with the AMS Device Manager database via WiFi or USB connection.
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
For a communicator to be useful in the field, it must be built to last and ready for anything. The Trex communicator is designed to withstand the harsh conditions in and around manufacturing facilities. The rugged device is easy to hold, yet designed to take the bumps and drops that come from normal use in the plant. In addition, the Trex communicator is protected against moisture and extreme temperatures, allowing you to work regardless of environmental conditions. The sturdy exterior is designed in accordance with Intrinsic Safety standards to limit the buildup of static electrical energy. Unlike consumer-grade mobile devices, the Trex communicator will withstand the abuse of a harsh field environment.
Ordering Codes of Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
TREXCHPNAWS1 TREXLHPNAWS1 TREXCFPNAWS1 TREXLFPNAWS1 TREXCHPNAWS3 TREXLHPNAWS3TREXCFPNAWS3 TREXLFPNAWS3 TREXCHPNAWP1 TREXLHPNAWP1 TREXCFPNAWP1 TREXLFPNAWP1 TREXCHPNAWP3 TREXLHPNAWP3 TREXCFPNAWP3 TREXLFPNAWP3 TREXCHPNA9S1 TREXLHPNA9S1TREXCFPNA9S1 TREXLFPNA9S1 TREXCHPNA9S3 TREXLHPNA9S3 TREXCFPNA9S3 TREXLFPNA9S3 TREXCHPNA9P1 TREXLHPNA9P1 TREXCFPNA9P1 TREXLFPNA9P1 TREXCHPNA9P3 TREXLHPNA9P3TREXCFPNA9P3 TREXLFPNA9P3 TREXCHPKLWS1 TREXLHPKLWS1 TREXCFPKLWS1 TREXLFPKLWS1 TREXCHPKLWS3 TREXLHPKLWS3 TREXCFPKLWS3 TREXLFPKLWS3 TREXCHPKLWP1 TREXLHPKLWP1 TREXCFPKLWP1 TREXLFPKLWP1 TREXCHPKLWP3 TREXLHPKLWP3 TREXCFPKLWP3 TREXLFPKLWP3 TREXCHPKL9S1 TREXLHPKL9S1 TREXCFPKL9S1 TREXLFPKL9S1 TREXCHPKL9S3 TREXLHPKL9S3TREXCFPKL9S3 TREXLFPKL9S3 TREXCHPKL9P1 TREXLHPKL9P1 TREXCFPKL9P1 TREXLFPKL9P1 TREXCHPKL9P3 TREXLHPKL9P3 TREXCFPKL9P3 TREXLFPKL9P3
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
TREXCHPNAWS1S
TREXCHPNAWS3S
TREXCHPNAWP1S
TREXCHPNAWP3S
TREXCHPNA9S1S
TREXCHPNA9S3S
TREXCHPNA9P1S
TREXCHPNA9P3S
TREXCHPKLWS1S
TREXCHPKLWS3S
TREXCHPKLWP1S
TREXCHPKLWP3S
TREXCHPKL9S1S
TREXCHPKL9S3S
TREXCHPKL9P1S
TREXCHPKL9P3S
TREXCFPNAWS1S
TREXCFPNAWS3S
TREXCFPNAWP1S
TREXCFPNAWP3S
TREXCFPNA9S1S
TREXCFPNA9S3S
TREXCFPNA9P1S
TREXCFPNA9P3S
TREXCFPKLWS1S
TREXCFPKLWS3S
TREXCFPKLWP1S
TREXCFPKLWP3S
TREXCFPKL9S1S
TREXCFPKL9S3S
TREXCFPKL9P1S
TREXCFPKL9P3S
TREXLHPNAWS1S
TREXLHPNAWS3S
TREXLHPNAWP1S
TREXLHPNAWP3S
TREXLHPNA9S1S
TREXLHPNA9S3S
TREXLHPNA9P1S
TREXLHPNA9P3S
TREXLHPKLWS1S
TREXLHPKLWS3S
TREXLHPKLWP1S
TREXLHPKLWP3S
TREXLHPKL9S1S
TREXLHPKL9S3S
TREXLHPKL9P1S
TREXLHPKL9P3S
TREXLFPNAWS1S
TREXLFPNAWS3S
TREXLFPNAWP1S
TREXLFPNAWP3S
TREXLFPNA9S1S
TREXLFPNA9S3S
TREXLFPNA9P1S
TREXLFPNA9P3S
TREXLFPKLWS1S
TREXLFPKLWS3S
TREXLFPKLWP1S
TREXLFPKLWP3S
TREXLFPKL9S1S
TREXLFPKL9S3S
TREXLFPKL9P1S
TREXLFPKL9P3S
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
TREXCHPNAWS1 TREXLHPNAWS1 TREXCFPNAWS1 TREXLFPNAWS1 TREXCHPNAWS3 TREXLHPNAWS3 TREXCFPNAWS3 TREXLFPNAWS3 TREXCHPNAWP1 TREXLHPNAWP1 TREXCFPNAWP1 TREXLFPNAWP1 TREXCHPNAWP3 TREXLHPNAWP3 TREXCFPNAWP3 TREXLFPNAWP3 TREXCHPNA9S1 TREXLHPNA9S1 TREXCFPNA9S1 TREXLFPNA9S1 TREXCHPNA9S3 TREXLHPNA9S3 TREXCFPNA9S3 TREXLFPNA9S3 TREXCHPNA9P1 TREXLHPNA9P1 TREXCFPNA9P1 TREXLFPNA9P1
TREXCHPNA9P3 TREXLHPNA9P3 TREXCFPNA9P3 TREXLFPNA9P3 TREXCHPKLWS1 TREXLHPKLWS1 TREXCFPKLWS1 TREXLFPKLWS1 TREXCHPKLWS3 TREXLHPKLWS3 TREXCFPKLWS3 TREXLFPKLWS3 TREXCHPKLWP1 TREXLHPKLWP1 TREXCFPKLWP1 TREXLFPKLWP1 TREXCHPKLWP3 TREXLHPKLWP3 TREXCFPKLWP3 TREXLFPKLWP3 TREXCHPKL9S1 TREXLHPKL9S1 TREXCFPKL9S1 TREXLFPKL9S1 TREXCHPKL9S3 TREXLHPKL9S3 TREXCFPKL9S3 TREXLFPKL9S3
TREXCHPKL9P1 TREXLHPKL9P1 TREXCFPKL9P1 TREXLFPKL9P1 TREXCHPKL9P3 TREXLHPKL9P3 TREXCFPKL9P3
TREXLFPKL9P3
Emerson TREXCFPNAWS3S AMS Trex Device Communicator with HART FOUNDATION Fieldbus Germany Origin
TREX-0002-1211 Rechargeable Li-Ion Power Module
TREX-0002-3611 Rechargeable Li-Ion Power Module (with 3 years premium coverage)
TREX-0003-0011 AC Adapter (includes US, EU, UK, AU outlet plugs)
TREX-0003-0022 DC Adapter (12v vehicle accessory outlet)
TREX-0003-0002 AC Outlet Plugs (replacement set includes US, EU, UK, AU)
TREX-FFPA-0001 Foundation Fieldbus Power Plug
TREX-0004-0001 Lead Set with connectors
TREX-0005-0002 Hand Strap (replacement set of 2)
TREX-0005-0011 Carrying Case (includes hand & shoulder straps)
TREX-0005-0009 Shoulder Strap (replacement for use with carrying case)
TREX-0005-0004 Magnetic Hanger
TREX-0004-0002 USB cable (USB to micro USB)
TREX-PMDC-1211 Device Communicator communication module
TREX-PMDC-3611 Device Communicator communication module (with 3 years premium coverage)
TREX-PMDP-1211 Device Communicator Plus communication module
REX-PMDP-3611 Device Communicator Plus communication module (with 3 years premium coverage)
TREX-0012-0011 Stand (replacement integral to communication module)(
TREX-0045-0001 Quick Start Guide (Multilingual)
TREX-0049-0001 Resource DVD
