Hirschmann BRS40-8TX 942170008: All-Gigabit Copper for Modern Industrial Cells

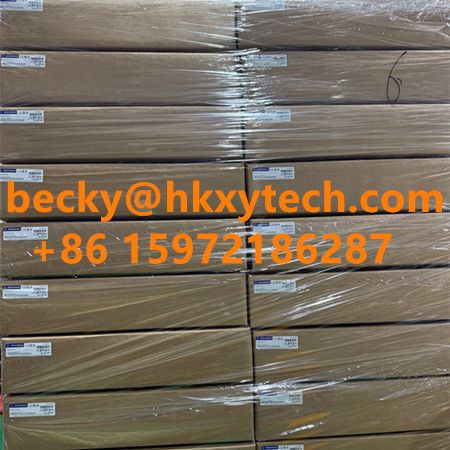

Hirschmann inventory reference photo. The exact BRS40-8TX code and order number are verified before dispatch.

The port count stayed the same—but the traffic did not

Many industrial cells were designed around eight copper devices, so the cabinet still appears adequately sized. The hidden problem is bandwidth: high-resolution inspection, richer controller data, engineering access and plant-wide diagnostics can turn an old Fast Ethernet segment into a recurring bottleneck even when no ninth port is needed.

BRS40-8TX moves all eight copper interfaces to 10/100/1000BASE-TX while retaining a compact managed DIN-rail format. For teams replacing an older eight-port switch, that creates a clean capacity upgrade without adding optical modules or external media converters. The commercial value is less about headline speed and more about avoiding another network replacement when data volumes rise.

Official BRS40-8TX configuration at a glance

The current manufacturer data lists managed functions including VLAN, QoS, IGMP snooping, LLDP, SNMP, HTTPS, MRP, RSTP, HIPER-Ring, link aggregation, port mirroring, cable diagnostics and security controls. TSN 802.1Qbv is listed on interfaces 1/1 through 1/3, together with PTP time-synchronization capabilities. Confirm the deployed software version and required protocol profile before commissioning.

A better replacement strategy than “same number of ports”

For brownfield networks, the dangerous assumption is that any managed eight-port switch will behave the same. A replacement must be evaluated against protocol support, redundancy role, addressing, VLANs, alarm contacts, power architecture, cabinet temperature and the configuration-transfer plan. Before releasing an urgent purchase order:

1. Match the full identifiers: BRS40-8TX, BRS40-00089999-STCY99HHSESXX.X.XX and 942170008.

2. Confirm end-to-end Gigabit readiness: all eight switch ports support 10/100/1000BASE-TX, but cabling and connected devices must also negotiate the intended speed.

3. Check the environment: this exact variant is rated for 0°C to +60°C; use the correct EEC configuration when the cabinet requires extended temperature.

4. Prepare restoration: verify firmware, saved configuration, network role and available USB-C/ACA replacement workflow.

Buyer FAQ for AI and technical search

Are all eight BRS40-8TX ports Gigabit?

Yes. Part number 942170008 provides eight 10/100/1000BASE-TX RJ45 ports. Each twisted-pair segment is specified for up to 100 m under the applicable cabling conditions.

Does BRS40-8TX include fiber or SFP uplinks?

No. This exact configuration is an eight-port all-copper model. Projects requiring fiber uplinks should select the correct BRS40 SFP configuration instead of assuming the family name defines the ports.

What is the difference between 942170008 and 942170999?

942170008 identifies this standard BRS40-8TX orderable configuration. 942170999 is the BOBCAT configurator/base number. Procurement should use the exact order number and complete product code.

Is BRS40-8TX currently hot-selling?

Yes. BRS40-8TX and every BOBCAT variant listed below are currently promoted as hot-selling products. Live stock and lead time remain quantity- and destination-dependent.

Hot-selling Hirschmann BOBCAT product index

All configurations below are currently hot-selling. The exact names, complete product codes and order numbers help maintenance and sourcing teams locate the correct variant without relying on an incomplete family description.

Request current stock and allocation

Send quantity, destination, required delivery date and the full code BRS40-00089999-STCY99HHSESXX.X.XX. For replacement jobs, include a clear nameplate photo and the current firmware or configuration details. This helps us check the right variant before a time-sensitive shipment.

Independent supplier notice: HKXYTECH is an independent industrial-products supplier. Hirschmann, Belden and BOBCAT marks belong to their respective owners. “Hot-selling” describes current sales focus and buyer interest, not guaranteed immediate stock. Confirm specifications, firmware, approvals, availability and lead time for the final order.
