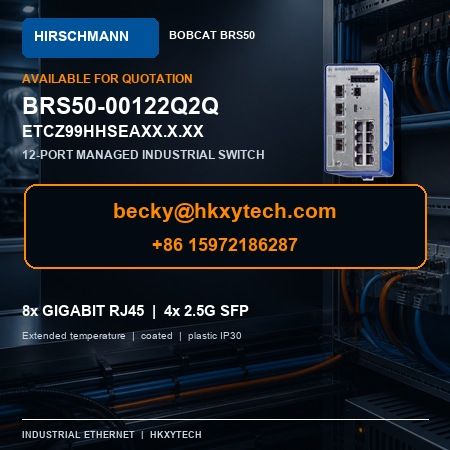

Hirschmann BRS50-00122Q2Q-ETCZ99HHSEAXX.X.XX BOBCAT 12-Port Managed Switch

Hirschmann BRS50-00122Q2Q-ETCZ99HHSEAXX.X.XX is a compact BOBCAT managed industrial Ethernet switch for DIN-rail installation. This configuration provides eight Gigabit RJ45 ports plus four SFP slots supporting 100/1000/2500 Mbit/s, for a total of 12 network ports.

Compact Gigabit switching with flexible fiber bandwidth

The four 2Q uplink slots accept supported SFP modules at 100 Mbit/s, 1 Gbit/s or 2.5 Gbit/s. This flexibility suits compact machine networks, automation cells and distributed control cabinets that need Gigabit device connectivity plus higher-bandwidth fiber uplinks. SFP modules are selected separately for the required medium and link distance.

What ETCZ99HHSEA identifies

In the Hirschmann product-code structure, E specifies the extended -40°C to +70°C range with conformal coating, T specifies redundant 12–24 VDC inputs, and C identifies an IP30 plastic housing. The later characters specify the approval set, Hirschmann standard hardware, Entry software configuration and HiOS Layer 2 Advanced software level.

• Compact fanless design for DIN-rail installation.

• USB-C interface for supported local management and device replacement workflows.

• Managed networking functions for VLAN, QoS, diagnostics and redundancy.

• BOBCAT platform support for secure, real-time industrial Ethernet architectures.

Request price and lead time

Because 942170999 is used as a BOBCAT configurable-product base number, send the complete string BRS50-00122Q2Q-ETCZ99HHSEAXX.X.XX with quantity, destination and required firmware or approval details. We can help check sourcing options, stock and lead time.

Disclaimer: HKXYTECH is an independent industrial products supplier. Hirschmann, Belden and BOBCAT marks belong to their respective owners. Verify the complete configuration, current firmware, approvals and accessories before ordering.
