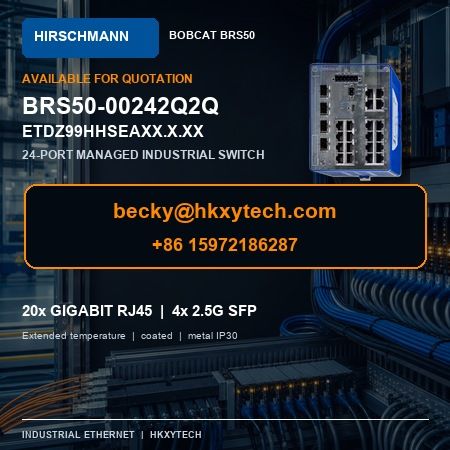

Hirschmann BRS50-00242Q2Q-ETDZ99HHSEAXX.X.XX BOBCAT 24-Port Managed Switch

Hirschmann BRS50-00242Q2Q-ETDZ99HHSEAXX.X.XX is a high-density BOBCAT managed industrial Ethernet switch for DIN-rail installation. This configuration provides 20 Gigabit RJ45 ports plus four SFP slots supporting 100/1000/2500 Mbit/s, for a total of 24 network ports.

High-density Gigabit access with 2.5G fiber uplinks

The BRS50 BOBCAT platform combines Gigabit copper access ports with tri-speed SFP uplinks. Network designers can use suitable SFP modules at 100 Mbit/s, 1 Gbit/s or 2.5 Gbit/s, helping increase backbone bandwidth without replacing the switch. SFP transceivers should be selected separately for the required fiber type, distance and environmental rating.

What ETDZ99HHSEA identifies

In the Hirschmann product-code structure, E specifies the extended -40°C to +70°C range with conformal coating, T specifies redundant 12–24 VDC inputs, and D identifies an IP30 metal housing. The later characters specify the approval set, Hirschmann standard hardware, Entry software configuration and HiOS Layer 2 Advanced software level.

• Fanless DIN-rail design for industrial control cabinets.

• USB-C interface for supported local management and device replacement workflows.

• Managed networking functions for VLAN, QoS, diagnostics and redundancy.

• BOBCAT platform support for secure, real-time industrial Ethernet architectures.

Request price and lead time

Because 942170999 is used as a BOBCAT configurable-product base number, send the complete string BRS50-00242Q2Q-ETDZ99HHSEAXX.X.XX with quantity, destination and required firmware or approval details. We can help check sourcing options, stock and lead time.

Disclaimer: HKXYTECH is an independent industrial products supplier. Hirschmann, Belden and BOBCAT marks belong to their respective owners. Verify the complete configuration, current firmware, approvals and accessories before ordering.
